I’m finally starting to take time to document some of the things I’ve been through with the car over the last couple of years so I figured I’d do a quick post about how I solved an annoying vibration problem I was having.
I mentioned in an earlier post that after I took the car to a shop to have them replace the clutch that the car was vibrating at all speeds but it was really bad between 35 and 50 MPH. I contacted the repair shop and took the car back to them to have them investigate even though they said it couldn’t be anything they did. That makes sense, the car didn’t vibrate when I dropped it off for the clutch replacement but did horribly when I picked it up… yeah, there is no way it was anything they did. At any rate, I left the car there for a month and they couldn’t find for sure what the problem was I don’t really think they looked too hard and it was like pulling teeth to get updates from them about it. Finally they called and told me that they think it is the right rear tire with a flat spot. Once I got the car home again I switched it back to the OEM wheels and tires but low and behold the vibration was still there. I wasn’t about to take it back to this shop again so the next place I went was a local “fix all” mechanic/tire shop to have them put it on a lift and check it out and they said it was probably a warped wheel so I ordered a replacement wheel on eBay which was another waste of money because it didn’t solve the problem.

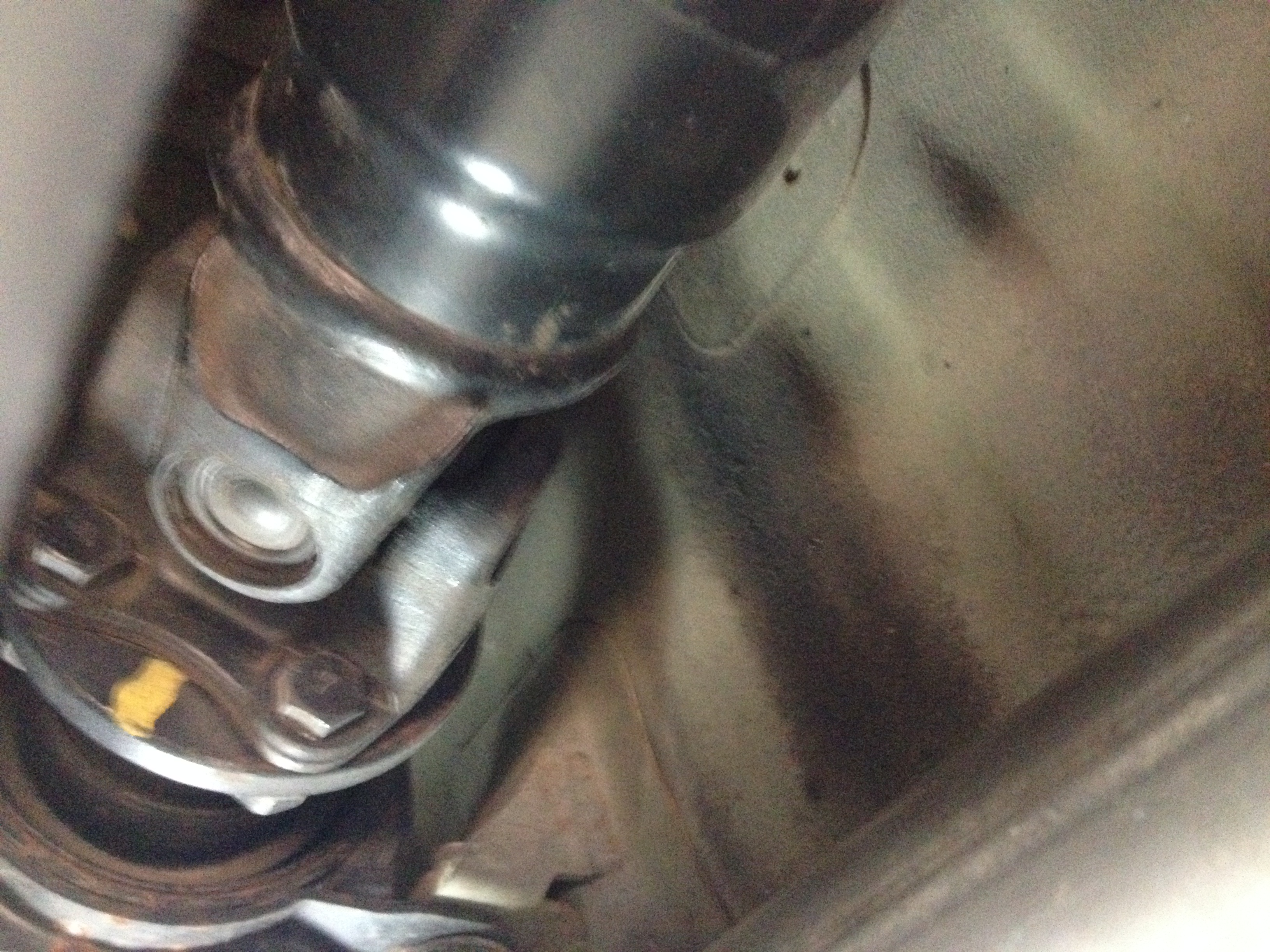

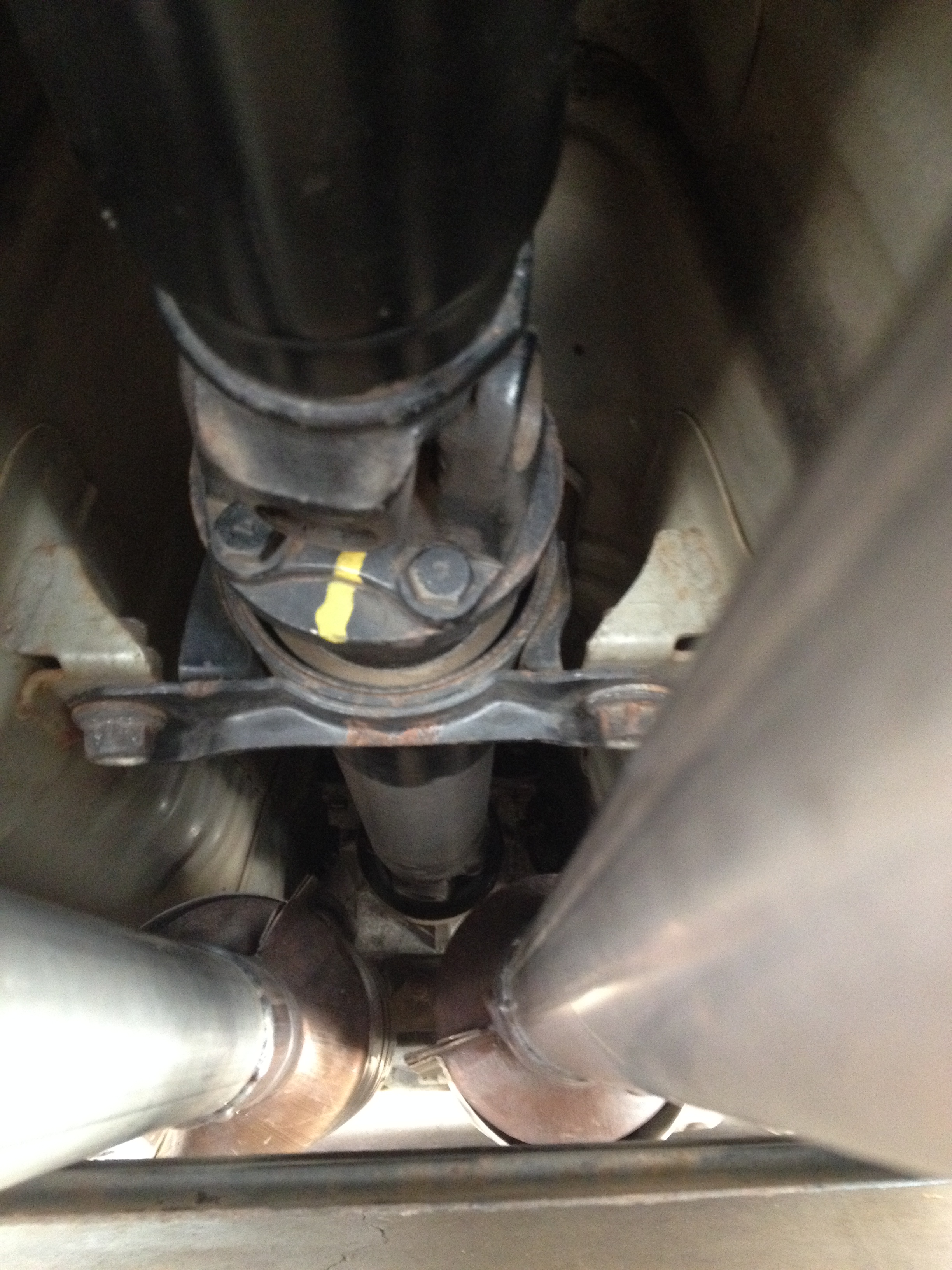

I ended up just giving up on it for a while and drove the car around with the vibration and mostly got used to it until a few months ago when I’d had enough so I decided to crawl underneath and take another look. I had read many forum posts about the symptoms I had and a lot of them mentioned the drive-shaft being out of balance. This could be something as simple as a missing washer on one of the 4 bolts that connects the 2 pieces of the drive-shaft. When I was under the car I noticed a yellow mark on the front piece of the drive-shaft (seen in the photo below) that looked like it needed to be lined up with another yellow mark on the rear part of the shaft.
After some fancy maneuvering I was able to get the 4 bolts removed and turn the shaft so that it lined up properly.
Once I got everything buckled back up I was eager to get the car out on the road to see if this solved that nagging vibration problem and sure enough it did! I was very pleased with finally resolving this because it had almost made me want to give up on the car a few times. It did make me give up on ever using that shop again. I still cannot figure out how they screwed this up in the first place and then couldn’t find the problem after a month of “investigating” it but I’ll just mark it down as a lesson learned and pass on my opinion of this place to anyone who asks.
My car still has it’s issues but I am now one step closer to getting the car where I want it to be thanks to Google and a little elbow grease.
Did it vibrate when accelerating? Coasting? All the time?
Hi Tony,
When this was happening it happened all the time between about 35-50 mph, in gear, out of gear, coasting, etc.
I hope this helps.
This sounds eerily similar to the situation I am dealing with. I brought my 1988 300zx in to get some transmission work done, and tighten a few things up. They decided that the driveshaft was out of balance so they balanced it. It then had a deep vibration I noticed from 65km/h upwards. They have now put a whole new one in to no avail, and are telling me that the yoke is bent in the rear. I don’t see how that could have happened if it wasn’t doing that before… In any event I sent them your article. We shall see!
Hi Steve, I sure hope that your issue ends up being something simple like mine was. It sounds like you’ve had to go through the same mess I did trying to get it figured out. I had to go re-read my post to even remember having to buy another rear wheel since they told me it was probably warped. Good luck!
Do you still have the Z?
Hi Jeremiah,
I apologize, I’m only a few years late on this reply, I got notice this morning of a reply on here and I’m just now seeing yours. Yep, I still have it, it’s covered in the driveway now awaiting an engine transplant. I broke a bolt off in the motor when jacking around with a timing belt pulley and it’s been on the backburner ever since. One day though, I will get it back on the road.
Was this all the time or just acceleration? I get vibration when I turn but none if I’m in neutral. I remembered that my friend did not mark the driveshaft before taking it off and I’m not sure if that’s the issue.
Hi Poncho,
This was all the time at a certain speed, so no matter if I was in gear, coasting, etc. if I was going between 35-50 MPH then the vibration was there. I once had a vibration issue that sounds similar to yours but it was on a front wheel drive Volvo, that ended up being worn joints on one of the driveshafts. I hope you can track down your problem, it’s frustrating when things like that are occurring and you can’t pinpoint them.
Oh, I should also say, it seems like we also had similar vibrations on another car and it ended up being the bearings in the front hub.
